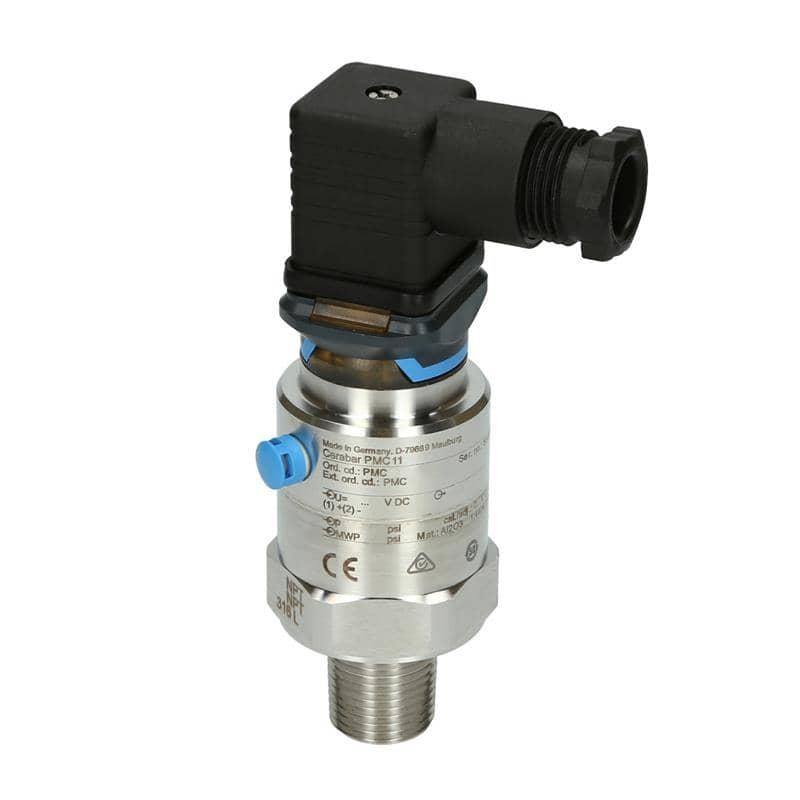

Pressure Gauge Cerabar PMC11

Description

The Cerabar PMC11 is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil-free ceramic sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high quality materials like 316L and 99,9% Al₂O₃.

Pressure transducer with oil-free ceramic sensor to measure gauge pressure in gases or liquids.

• Process connections: Threads
• Process temperature: -25 to +85°C (-13 to +185°F)
• Process pressure: 400mbar to +40bar (6 to 600psi)
• Accuracy: ±0.5% of span
